switching regulator chip TPS562201DDCR TPS562201 2201 SOT23-6 SMD In Stock New Original

Model:

switching regulator chip TPS562201DDCR TPS562201 2201 SOT23-6 SMD In Stock New Original

Quality 100% TPS562201DDCR TPS562201 2201 SOT23-6 SMD switching regulator chip

package 2201 TPS562201DDCR

Description:

TPS56220x 4.5-V to 17-V Input, 2-A Synchronous Step-Down Voltage Regulator in 6-Pin SOT-23

The TPS562201 and TPS562208 are simple, easy-to-use, 2-A synchronous step-down converters in SOT-23 package.

The TPS562201 operates in pulse skip mode, which maintains high efficiency during light load operation.
The TPS562201 and TPS562208 are available in a 6- pin 1.6 × 2.9 (mm) SOT (DDC) package and specified from –40°C to 125°C of junction temperature.

Features:

• TPS562201 and TPS562208 2-A converter integrated 140-mΩ and 84-mΩ FETs
• D-CAP2™ mode control with fast transient response
• Input voltage range: 4.5 V to 17 V
• Output voltage range: 0.76 V to 7 V
• Pulse-skip mode (TPS562201) or continuous current mode (TPS562208)
• 580-kHz Switching frequency
• Low shutdown current less than 10 μA
• 2% Feedback voltage accuracy (25°C)
• Start-up from pre-biased output voltage
• Cycle-by-cycle overcurrent limit
• Hiccup-mode overcurrent protection
• Non-latch UVP and TSD protections
• Fixed soft start: 1.0 ms

Applications

• Digital TV power supply
• High definition Blu-ray™ disc players
• Networking home terminal
• Digital set-top box (STB)
• Surveillance

PACKAGING INFORMATION

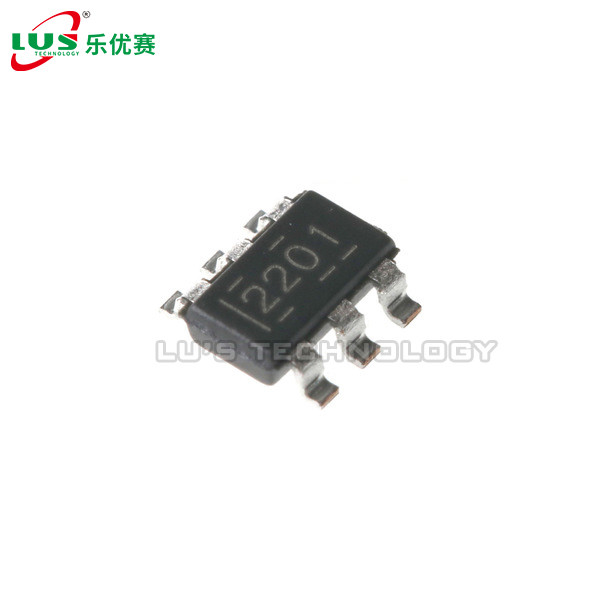

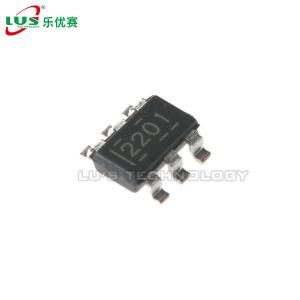

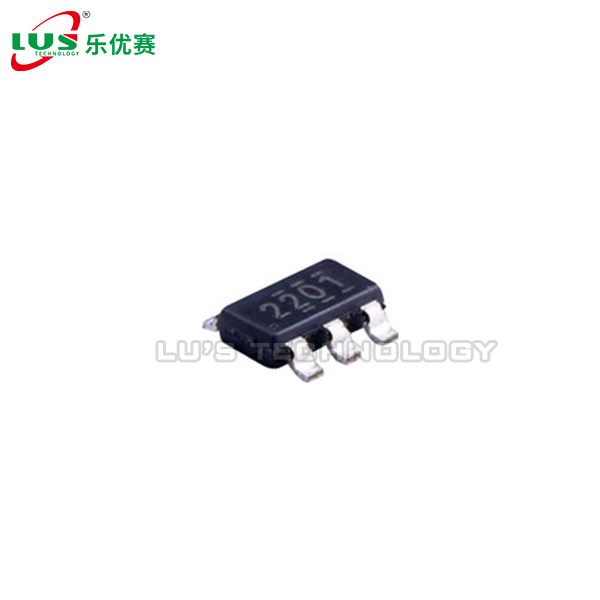

TPS562201DDCR picture:

Power Regulator Chip TPS562201DDCR

SOT23-6 SMD Power Regulator Chip

Voltage Regulator Chip TPS562201DDCR

SOT23-6 SMD Power Regulator Chip TPS562201DDCR Images
